Description

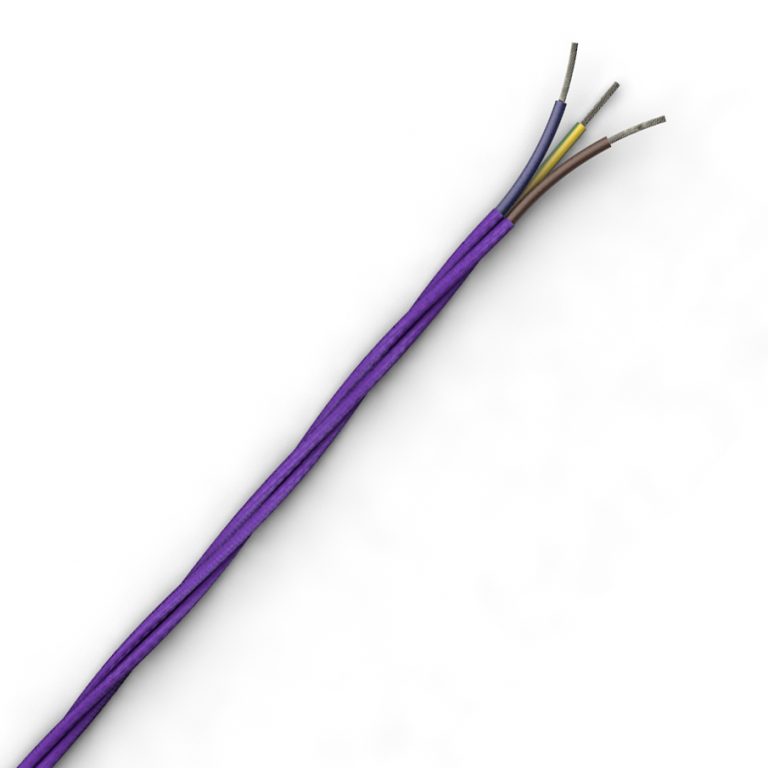

The BTFF-403 is a premium quality triple twisted textile braided flexible cable, designed for decorative lighting applications where both aesthetics and performance are essential.
Manufactured with double insulated FEP/FEP construction, this cable provides excellent thermal resistance, flexibility, and durability. It is ideal for use in pendant lighting, wall lights, and ceiling installations.
This 3 core 0.75 mm² cable is suitable for Class I electrical fittings, ensuring safe and reliable performance in residential, commercial, and interior design environments.
Finished with a high-quality viscose rayon textile braid, the BTFF-403 delivers a stylish, vintage appearance while maintaining robust electrical performance.
Available in over 70 colours and patterns, this cable can be customised to match a wide range of design requirements.
Key Features
-
Triple twisted decorative textile braided cable
-
Double insulated FEP/FEP construction
-
Suitable for Class I applications
-
High temperature resistance
-
Flexible and durable
-
Available in 70+ colours and patterns
Applications
-
Pendant lighting
-
Wall light fittings
-
Ceiling lighting installations
-
Decorative lighting systems
Technical Specification
| Description | Value |
|---|---|
| Voltage Rating (Uo/U) | 300/500 Vac |
| Test Voltage | 2500 Vac |
| Temperature Range (Inner) | -55°C to 180°C |
| Temperature Range (Outer) | -55°C to 180°C |
| Short Circuit Temperature | 160°C |
| Minimum Bending Radius | 14 x Overall Diameter |
| Conductor Size | 3 x 0.75 mm² |
| Conductor Stranding | 19 x 0.224 mm |
| Electrical Resistance | ≤ 26.7 Ω/km |
| Insulation Thickness | ≥ 0.60 mm |
| Outer Diameter | 5.6 ± 0.5 mm |
Cable Construction
-
Viscose rayon textile braid
-
R5F FEP inner insultation
- R5f FEP outer insulation
-
Electrolytic tinned flexible copper conductor
-
Triple twisted core assembly
Standards
Manufactured in accordance with:
Low Voltage European Directive 2014/35/EU
Core Identification
-
Brown
-
Blue
-
Green/Yellow
Resources
-
Technical Data Sheet
-
Declaration of Conformity
-
Colour Chart available on request
At Flexform, we supply high-quality triple twisted braided cable, designed for durability and stylish visible wiring. Ideal for DIY projects, replacements, and custom builds.
We also manufacture UK, EU, and UL lead sets to your exact requirements, including custom lengths, colours, and configurations.
Contact us to request a price or discuss your specification.
