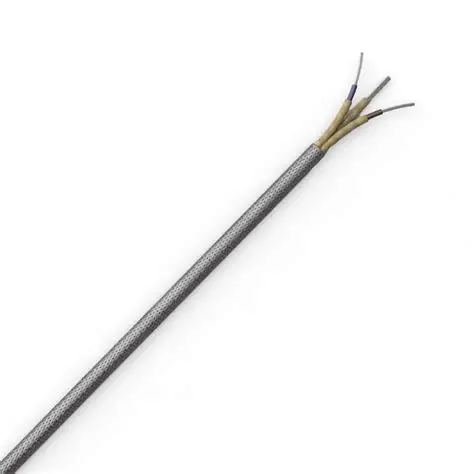

SUS-230BLK Round 3C 0.75 sqmm PVC/PUR Black Suspension Cable



Product Code: SUS-230BLK

Product Description

Black PUR/PVC suspension flex designed for use on multicore electrical applications such as lighting, chandeliers etc. This product is a 3 core 0.75 mm2 clear round flex with a  separate strain wire capable of holding a working load of 18 kg. This makes this product ideal for lighting scenarios where there is an increased strain placed on the electrical flex.



Resources



Description

Harpers SUS-230BLK

Product Specification

Description Value
Voltage Rating: 300/500 Vac
Temperature Range (Inner Insulation Only): 90 °C
Temperature Range (Outer Insulation Only): 85 °C
Conductor Size: 3 x 0.75 mm2
Conductor Stranding: 24 x 0.20 mm
Outer Diameter: 7.8 ± 0.2 mm
Working Load: 18 kg
Breaking Load: 90 kg
Product Code: SUS-230BLK



Cable Standards:

BS 4808 – Part 2; BS 6004; IEC 189-3
Low Voltage European Directive No. 2014/35/UE.

Stranding of Conductor:
Tinned copper conductor.

Insulation:
85 °C PVC insulation.

Cable Assembly:
The cores are twisted together.

Core Identification:
3 or more cores contain a coextruded coloured line for identification.
3 Core = Blue + Brown  + Green/Yellow + Suspension Wire

Outer Sheath:
Black 90 °C PUR sheath.

Related Accessories SUS-230BLK

Do you need a lamp holder or ceiling rose to pair with your flex? Check out our Accessories section for a large range of these. Need a lamp for your lamp holder? Check out our Lamps section for some real eye catchers from Calex.
